aluminum gate

　　WALK GATES

　　A single leaf gate; one leaf hinged to a post on one side and latched to a post on the opposite side. Walk gates are available in Residential, Commercial and Industrial grades in 4’, 5’, 6’, 7’ and 8’ H and 36”, 42”, 48”, 60”, or 72” widths; custom sizes available. All hardware is included, with U-Frame and Ultra Hinge optional.

　　DRIVE GATES

　　A double leaf gate; a gate with two leafs, latching together where they meet but hinged separately on opposite sides of the gate opening. Drive gates are available in Residential grade in 4’, 5’, 6’, 7’, 8’ H and a maximum of 12’ wide; in Commercial grade in 4’, 5’,6’, 7’, 8’ and a maximum of 16’ wide; and in Industrial grade in 4’, 5’, 6’, 7’, 8’ H and a maximum of 28’ wide; along with custom sizes if needed . All hardware is included, with U-Frame and Ultra Hinge optional.

　　ESTATE GATES

　　An Industrial grade Drive Gate where the upper horizontal rails are compound bowed to form a graceful rolling configuration. Suitable as a grand entrance for any property. Estate gates are available for openings that are 10’ to 28’ W and 4’, 5’ 6’, 7’ and 8’H along with custom sizes if needed. All hardware is included. U – Frame and Ultra Hinge is available as an option.

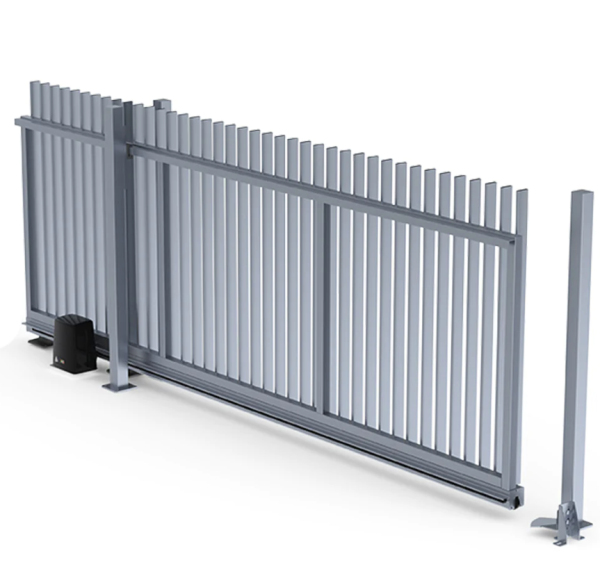

　　CANTILEVER GATES

　　A gate which opens and closes by rolling on wheels within a track along with specific hardware that are attached to posts; available in Industrial grade only for the ultimate in strength and durability. Cantilever gates are available for openings that are 6’ to 50’ W and 4’, 5’, 6’, 7’, and 8’H along with custom sizes if needed. All hardware is included or can be sold separately.

　　We also offer a Cantilevered Estate Gate which is a combination gate that includes the strength and durability of a Cantilever gate, along with the grace and beauty of an Estate gate. Available in Industrial grade only.
